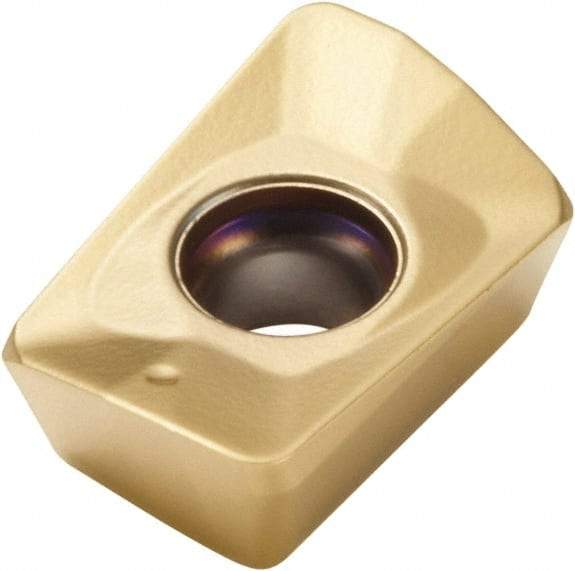

Seco - XOEX10T331 M06 Grade F40M Carbide Milling Insert - TiAlN/TiN Finish, 0.1496" Thick, 3.1mm Corner Radius
Item #: 81040925
Brand: Seco
Model #: 08769
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XOEX |
| Insert Size | 10T331 |
| Material | Carbide |
| Manufacturer's Grade | F40M |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.2705 |
| Length (Decimal Inch) | 0.3740 |
| Thickness (Decimal Inch) | 0.1496 |
| Corner Radius (Decimal Inch) | 0.1220 |
| Corner Radius (mm) | 3.10 |
| Rake | Positive |
| Coating Process | PVD |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | M06 |
| Manufacturers Catalog Number | XOEX 10T331R-M06 |
