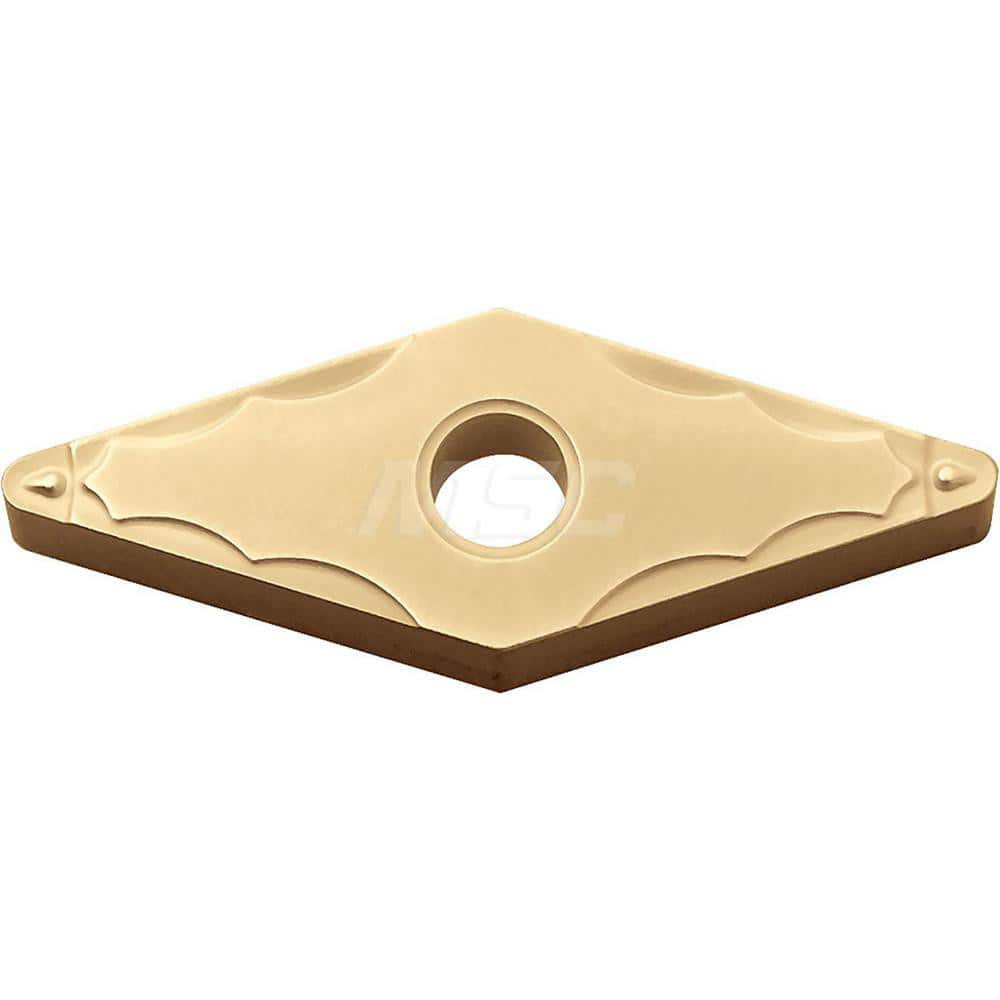

Kyocera VNMG 3305GP CA5515 Grade CVD Carbide, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing in (P) Carbon/Alloy Steel
Item #: 81049587
Brand: Kyocera
Model #: TJQ07570
Product Specifications
| Insert Style | VNMG |
| Insert Shape Code | V |
| Insert Size Code | 3305 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA5515 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 35.0 |
| Relief Angle | 0 |
| Rake | Negative |
| Primary Workpiece Material | P |
| Iso Code | VNMG160402GP |
| Manufacturers Catalog Number | VNMG3305GPCA5515 |
| Chip Breaker | GP |
| Style | VNMG |
| Full Radius | No |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Multi-Use Application | External Turning; Facing; Copying; Undercutting |
