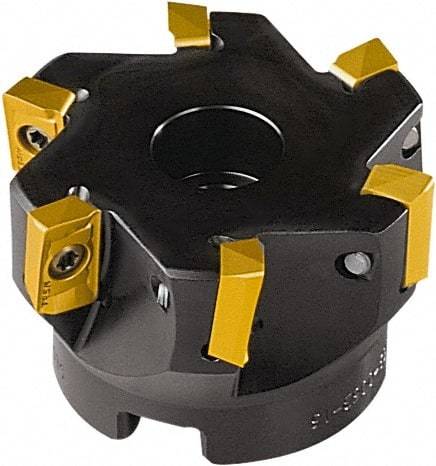

Seco - 6 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 15mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 40mm High, AP.. 1604 Insert Compatibility
Item #: 81195885
Brand: Seco
Model #: 11926
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | AP.. 1604 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutting Rake Angle | -12 |
| Rake | Negative |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Maximum RPM | 11600 |
| Pitch | Normal |
| Complete Insert Compatibility | APEX 160408FR-E08; APFT 160416L-M13; APFT 160416R-M13; APFT 160424R-M13; APFT 160430L-M13; APFT 160430R-M13; APFT 160430TR-MD15; APFT 160440R-M13; APFT 160448R-M13; APFT 160460R-M13; APFT 1604PDR-M12; APFT 1604PDTL-D15; APFT 1604PDTR-D15; APFT 1604PDTR-E0 |
