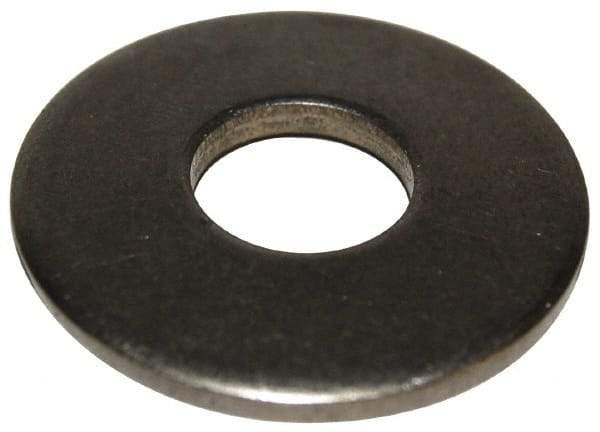

Gardner Spring - 1-3/8" Bolt, 1-13/32" ID, Grade 1074 Steel, Belleville Disc Spring - 2-3/4" OD, 0.173" High, 0.087" Thick
Item #: 81433641
Brand: Gardner Spring
Model #: MG2750-087
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1-3/8 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 1.4060 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 2.7500 |
| Thickness (Decimal Inch) | 0.0870 |
| Overall Height (Decimal Inch) | 0.1730 |
| Deflection (Decimal Inch) | 0.6880 |
| Deflection to Flat (Decimal Inch) | 0.0690 |
| Minimum Inside Diameter (Decimal Inch) | 1.4060 |
| Maximum Outside Diameter (Decimal Inch) | 2.7500 |
| Load at Flat (Lb.) | 1456.10 |
| Load at Flat (N) | 6405.00 |
| Load at Deflection (Lb.) | 1303.40 |
| Minimum Load at Deflection (Lb.) | 1106.00 |
| Minimum Load at Deflection (N) | 4920.00 |
| Maximum Load at Deflection (Lb.) | 1497.00 |
| Maximum Load at Deflection (N) | 6659.00 |
