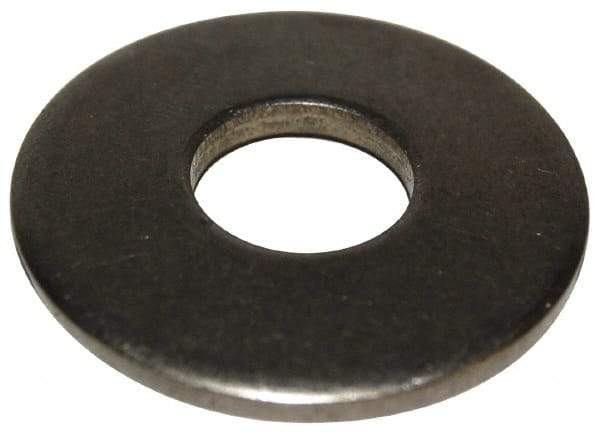

Gardner Spring - 1-1/2" Bolt, 1-9/16" ID, Grade 1074 Steel, Belleville Disc Spring - 3-1/4" OD, 0.305" High, 1/4" Thick
Item #: 81433708
Brand: Gardner Spring
Model #: MG3250-250
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1-1/2 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 1.5620 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 3.2500 |
| Thickness (Decimal Inch) | 0.2500 |
| Overall Height (Decimal Inch) | 0.3050 |
| Deflection (Decimal Inch) | 0.0440 |
| Deflection to Flat (Decimal Inch) | 0.0440 |
| Minimum Inside Diameter (Decimal Inch) | 1.5620 |
| Maximum Outside Diameter (Decimal Inch) | 3.2500 |
| Load at Flat (Lb.) | 15298.50 |
| Load at Flat (N) | 67938.00 |
| Load at Deflection (Lb.) | 12309.90 |
| Minimum Load at Deflection (Lb.) | 10463.00 |
| Minimum Load at Deflection (N) | 46542.00 |
| Maximum Load at Deflection (Lb.) | 14156.00 |
| Maximum Load at Deflection (N) | 62969.00 |
