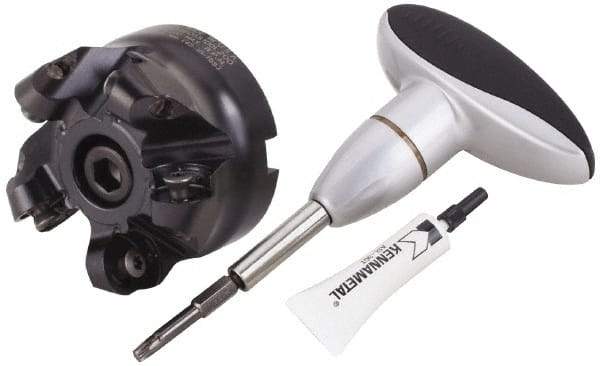

Kennametal - 76.2mm Cut Diam, 9.53mm Max Depth, 1" Arbor Hole, 5 Inserts, RCGX 64.. Insert Style, Indexable Copy Face Mill - KSRM Cutter Style, 15,000 Max RPM, 2 High, Through Coolant, Series Beyond Blast KSRM
Item #: 81506487
Brand: Kennametal
Model #: 4109184
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (mm) | 9.53 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (mm) | 50.80 |
| Overall Height (Inch) | 2 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | Beyond Blast KSRM |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RCGX 64.. |
| Cutter Style | KSRM |
| Through Coolant | Yes |
| Maximum RPM | 15000 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 2.7500 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RCGX 64.. |
