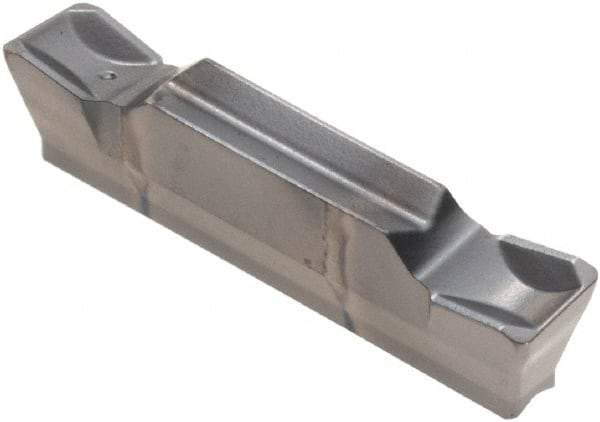

Iscar - HGN3003 IC908 Grade, 0.1181" Cutting Width, Carbide Cutoff Insert - Neutral Lead Angle, 0.0118" Cnr Rad, TiAlN Coated
Item #: 81719874
Brand: Iscar
Model #: 6002954
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | HGN |
| Insert Size | 3003 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Series | Do-Grip |
| Coating Process | PVD |
| Overall Length (mm) | 15.80 |
| Overall Length (Decimal Inch) | 0.6220 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Corner Radius (mm) | 0.30 |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
