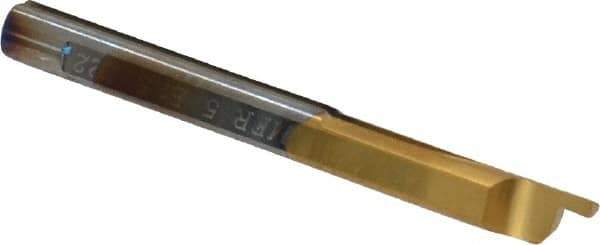

Carmex - 0.06" Groove Width, 0.24" Min Hole Diam, 7/8" Max Hole Depth, Face Grooving Tool - 0.1" Projection, 2" OAL, Solid Carbide, TiN Finish
Item #: 81756546
Brand: Carmex
Model #: MFR5B1.5L22
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Shank Diameter (mm) | 5.00 |
| Groove Width (Decimal Inch) | 0.0600 |
| Projection (Decimal Inch) | 0.1000 |
| Minimum Hole Diameter (Decimal Inch) | 0.2400 |
| Maximum Hole Depth (Inch) | 7/8 |
| Overall Length (Decimal Inch) | 2.0000 |
| Finish/Coating | TiN |
