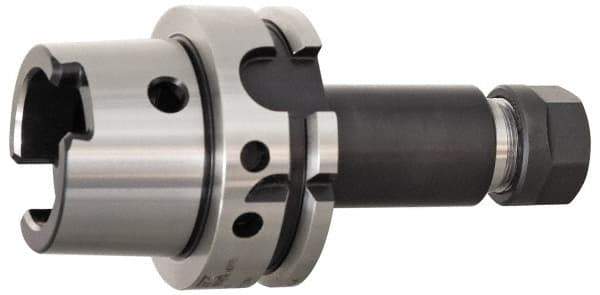

Kennametal - 2.03mm to 20.57mm Capacity, 90mm Projection, HSK40 Hollow Taper, ER32 Collet Chuck - 110mm OAL
Item #: 81819708
Brand: Kennametal
Model #: 2260344
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Hollow Taper |
| Taper Size | HSK40 |
| Projection (mm) | 90.00 |
| Projection (Decimal Inch) | 3.5430 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0800 |
| Minimum Collet Capacity (mm) | 2.03 |
| Maximum Collet Capacity (mm) | 20.57 |
| Maximum Collet Capacity (Decimal Inch) | 0.8100 |
| Overall Length (mm) | 110.00 |
| Overall Length (Decimal Inch) | 4.3307 |
| Actuator Type | Wrench |
| Nose Diameter (mm) | 50.00 |
| PSC Code | 5136 |
| Balanced to (RPM) | 15000 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.9700 |
| Collet Nut Diameter (mm) | 50.04 |
