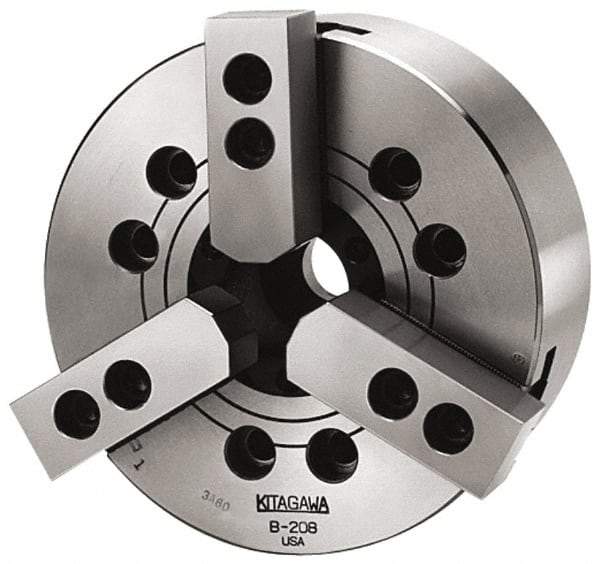

Kitagawa - 3 Jaws, 8" Chuck Diam, Plain Back Mount, 2.0472" Through Hole, Drawbar, Hydraulic Power Lathe Chuck - 19,292 Lb Force per Jaw, 1.5mm x 60 Serrated Jaw Interface, 13mm to 210mm Jaw Capacity, 5,000 RPM, High Speed Steel Body
Item #: 83072389
Brand: Kitagawa
Model #: B208
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Chuck Diameter (mm) | 209.95 |
| Chuck Diameter (Inch) | 8 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (mm) | 52.00 |
| Through-Hole Diameter (Decimal Inch) | 2.0472 |
| Chuck Actuation Style | Drawbar |
| Operation Type | Hydraulic |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Minimum Jaw Capacity (mm) | 13.00 |
| Maximum Jaw Capacity (mm) | 210.00 |
| Jaw Stroke Diameter (mm) | 7.40 |
| Piston Stroke Length (Decimal Inch) | 0.8660 |
| Maximum Drawbar Pulling Force (kN) | 34.80 |
| Maximum Static Gripping Force (kN) | 86.00 |
| Force Per Jaw (Lb.) | 19292.00 |
| Moment of Inertia (kgf/sq m) | 0.1700 |
| Maximum RPM | 5000 |
| Body Material | High Speed Steel |
| Power Cylinder Compatibility | S1552 |
| Includes | Chuck; Chuck Mounting Bolts; Draw Nut Wrench; Jaw Mounting Bolts w/ Wrench; Soft Top Jaws; T-Nuts |
