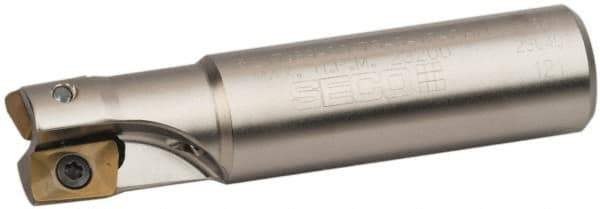

Seco - 3/4" Cut Diam, 0.433" Max Depth of Cut, 3/4" Shank Diam, 3.38" OAL, Indexable Square Shoulder End Mill - XO.X 1204.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Super Turbo
Item #: 83251272
Brand: Seco
Model #: 52518
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Cutting Diameter (Inch) | 3/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.3800 |
| Lead Angle | 90 |
| Series | Super Turbo |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R217.69-12A |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.1700 |
| Weldon Flat | Yes |
| Insert Compatibility | XO.X 1204.. |
| Shank Length (Decimal Inch) | 2.2000 |
| Maximum RPM | 23200 |
