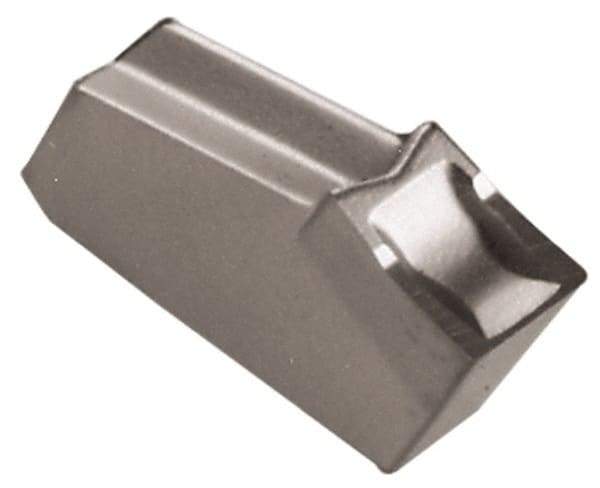

Iscar - GFL C IC328 Grade, 0.1969" Cutting Width, Carbide Cutoff Insert - 6° Left Hand Lead Angle, 0.011" Cnr Rad, TiCN Coated, Single End
Item #: 83787259
Brand: Iscar
Model #: 6002909
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | GFL |
| Lead Angle Direction | Left Hand |
| Lead Angle | 6 |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Material Grade | C2/C3/C5/C6 |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Series | Self-Grip |
| Relief Angle | 7 |
| Chipbreaker | C |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0110 |
| Corner Radius (mm) | 0.28 |
| Insert Holding Method | Clamp |
| Insert Seat Size | 5 |
