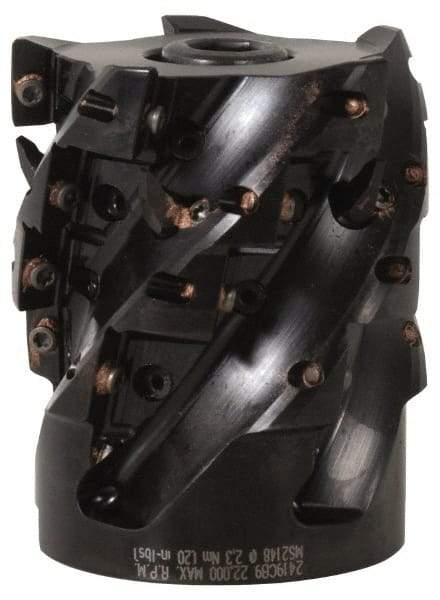

Kennametal - 6 Inserts, 63mm Cut Diam, 27mm Arbor Diam, 27mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, EC14.., EP14.. Insert Compatibility, Through Coolant, Series Mill 1-14
Item #: 83992693
Brand: Kennametal
Model #: 3743039
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4822 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | EC14.., EP14.. |
| Series | Mill 1-14 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 27.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Hub Diameter (mm) | 60.00 |
| Maximum RPM | 22000 |
