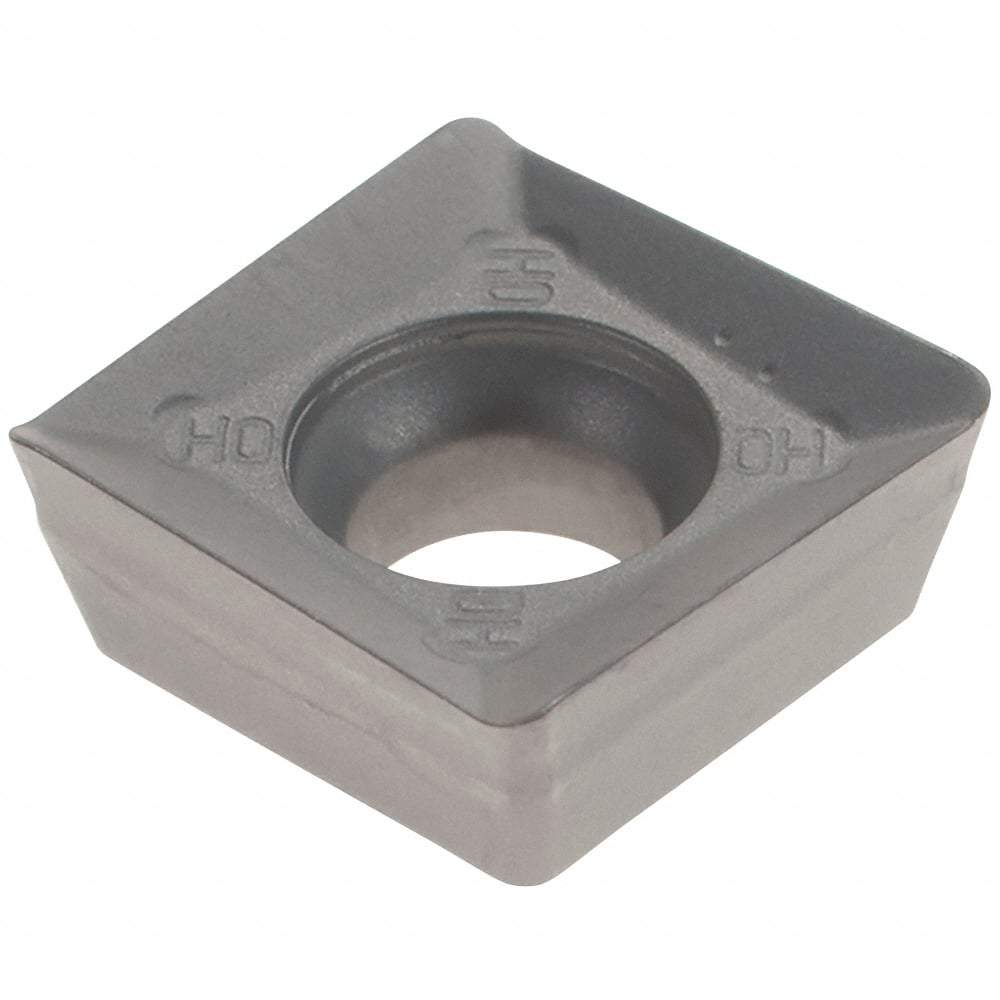

Iscar - SPMT100408 M Grade IC30N Carbide Milling Insert - Uncoated, 0.1665" Thick, 0.4016" Inscribed Circle, 0.8mm Corner Radius
Item #: 84641869
Brand: Iscar
Model #: 5604461
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPMT |
| Insert Size | 100408 |
| Material | Carbide |
| Manufacturer's Grade | IC30N |
| Coating | Uncoated |
| Inscribed Circle (Decimal Inch) | 0.4016 |
| Thickness (Decimal Inch) | 0.1665 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 11.000 |
| Rake Angle | 23 |
| Rake | Positive |
| Included Angle | 90 |
| Shape | Square |
| Chipbreaker | M |
| ISO Number | SPMT 100408R-HQ-M |
