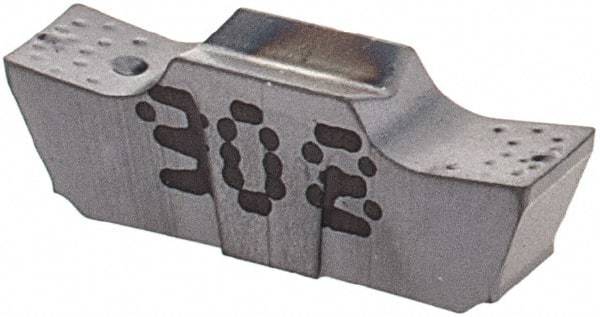

Iscar - 239015GEPI Grade IC908, 2.39mm Cutting Width Carbide Grooving Insert - 1mm Max Depth of Cut, Neutral, 0.15mm Corner Radius, TiAlN Finish
Item #: 85136646
Brand: Iscar
Model #: 6403199
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GEPI |
| Insert Size | 239015 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0941 |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Insert Hand | Neutral |
| Relief Angle | 8 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.3940 |
