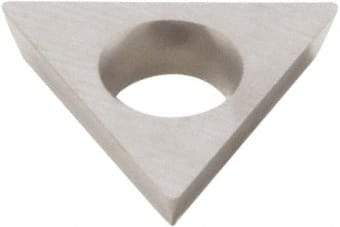

Seco - TDAB1.21.50.5 Grade 883 Carbide Turning Insert - Uncoated, 60° Triangle, 5/32" Inscr Circle, 3/64" Thick, 1/128" Corner Radius
Item #: 85259745
Brand: Seco
Model #: 54282
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TDAB |
| Insert Size | 1.21.50.5 |
| Material | Carbide |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 3/64 |
| Thickness (Decimal Inch) | 0.0470 |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Manufacturer's Grade | 883 |
| Coating | Uncoated |
| Hole Diameter (Decimal Inch) | 0.0930 |
| Relief Angle | 15 |
| Included Angle | 60 |
| Series | Secomax |
| Insert Holding Method | Screw |
| Shape | Triangle |
