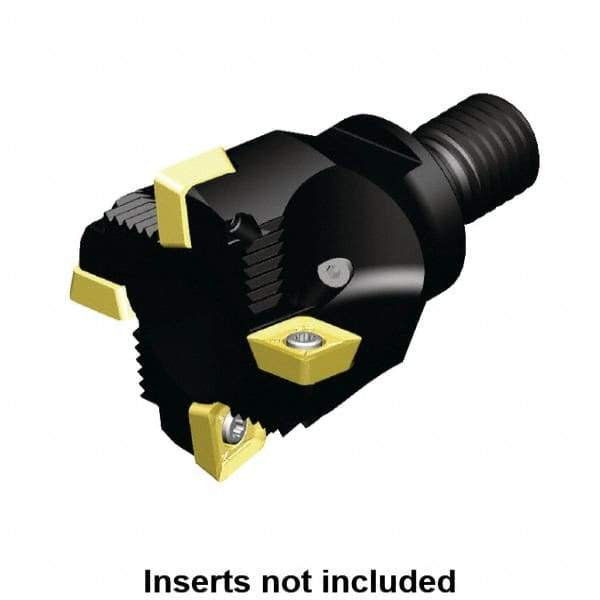

Kennametal - 2" Cut Diam, 0.433" Max Depth of Cut, Indexable Plunge End Mill - M16 Modular Connection, SD.T 43.. Insert Style, KTSZR Toolholder Style, Through Coolant
Item #: 85425015
Brand: Kennametal
Model #: 3449169
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Shank Type | Modular Connection |
| Modular Connection Size | M16 |
| Number of Cutter Inserts | 4 |
| Insert Style | SD.T 43.. |
| Toolholder Style | KTSZR |
| Number of Flutes | 4 |
| Overall Length/Projection (Decimal Inch) | 1.7500 |
| Coolant Hole Diameter (Decimal Inch) | 0.0790 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Maximum RPM | 20400 |
| ISO Number | KTSZR200SD430CM16A04 |
| End Mill Type | End Mill |
