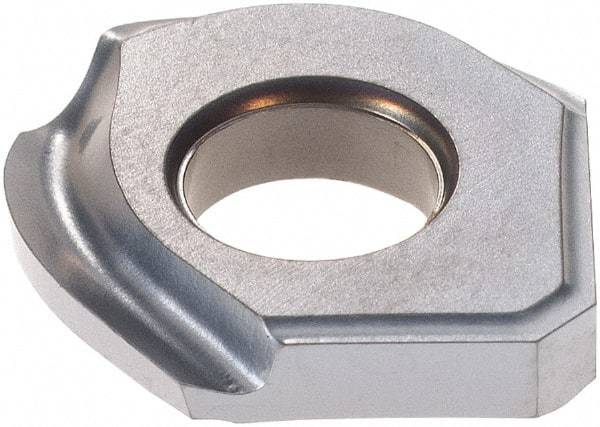

Iscar - HCRD.50 QP Grade IC328 Carbide Milling Insert - TiCN Finish, 0.102" Thick, 1/4" Corner Radius
Item #: 85464493
Brand: Iscar
Model #: 5605319
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HCR |
| Insert Size | D.50 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1020 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Coating Process | PVD |
| Shape | Ball Nose |
| Chipbreaker | QP |
| Maximum Depth of Cut (Decimal Inch) | 0.3820 |
| ISO Number | HCR D.50-QP |
