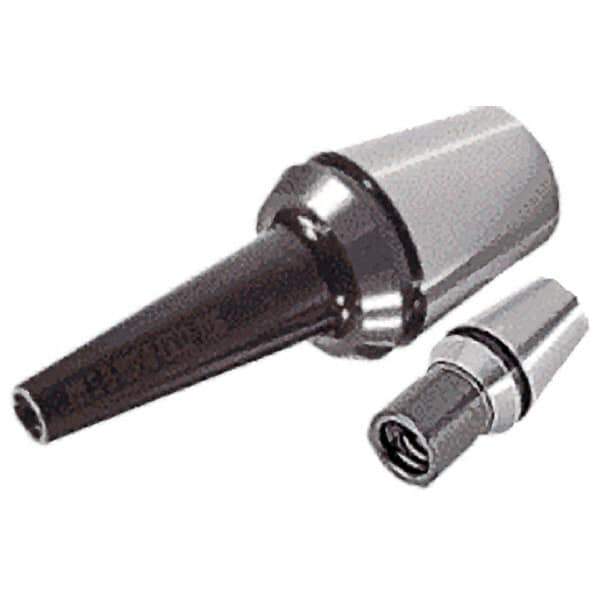

Iscar - Multimaster ER32 Collet Shank Milling Tip Insert Holder & Shank - T06 Neck Thread, 90mm OAL, MM S-ER Tool Holder
Item #: 85578219
Brand: Iscar
Model #: 3103639
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | Collet |
| Shank Taper Size | ER32 |
| Neck Thread Size | T06 |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 1.7720 |
| Effective Length (mm) | 50.00 |
| Effective Length (Decimal Inch) | 1.9685 |
| Milling Tip Style | CAT-ER-SHORT, HP E90AN-MM-07, MM EB, MM EC-4, MM GRIT-16K/18P, MM GRIT-K/P-45A, MM HCR, R-8 ER, ST-ER, T290 ELN-MM-05 |
| Shank Shape | Conical |
| Toolholder Style | MM S-ER |
