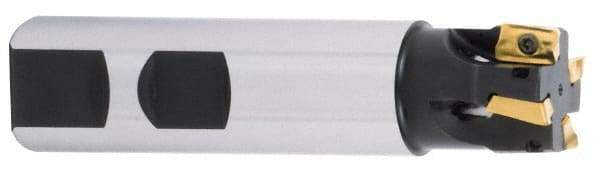

Iscar - 3/8" Cut Diam, 0.394" Max Depth of Cut, 1/2" Shank Diam, 3" OAL, Indexable Square Shoulder End Mill - APCR/APCT/APKR/APKT/APKW/HM90APCT/HM90APKT/HM90APKW 1003 Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Heli2000
Item #: 85660389
Brand: Iscar
Model #: 3101807
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Cutting Diameter (Inch) | 3/8 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length/Projection (Decimal Inch) | 3.0000 |
| Lead Angle | 90 |
| Series | Heli2000 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HM90 E90A-10 |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 0.6400 |
| Weldon Flat | Yes |
| Insert Compatibility | APCR/APCT/APKR/APKT/APKW/HM90APCT/HM90APKT/HM90APKW 1003 |
