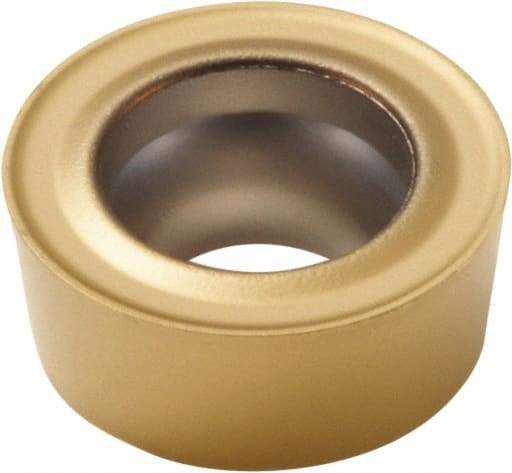

Seco - RCMT1204M0 F2 Grade TP40 Carbide Turning Insert - TiC/TiCN/TiN Finish, Round, 12mm Inscr Circle, 3/16" Thick
Item #: 86028800
Brand: Seco
Model #: 34255
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 1204M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Manufacturer's Grade | TP40 |
| Coating | TiC/TiCN/TiN |
| Chip Breaker | F2 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Insert Holding Method | Screw |
| Shape | Round |
