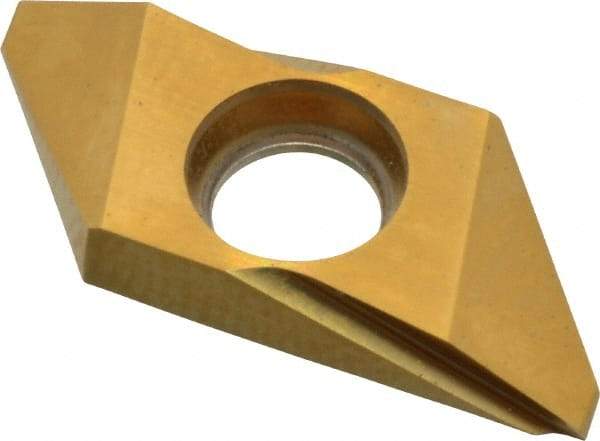

NTK - TBP60FR10 Grade ZM3 Carbide Turning Insert - TiN Finish, 60° Triangle, 2.5mm Thick, 0.0039" Corner Radius
Item #: 86121886
Brand: NTK
Model #: 5090402
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TBP |
| Insert Size | 60FR10 |
| Material | Carbide |
| Length (mm) | 3.50 |
| Length (Decimal Inch) | 0.1378 |
| Thickness (Decimal Inch) | 0.0984 |
| Thickness (mm) | 2.50 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | ZM3 |
| Coating | TiN |
| Material Grade | Micrograin |
| Relief Angle | 12 |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Insert Holding Method | Screw |
| Shape | Triangle |
