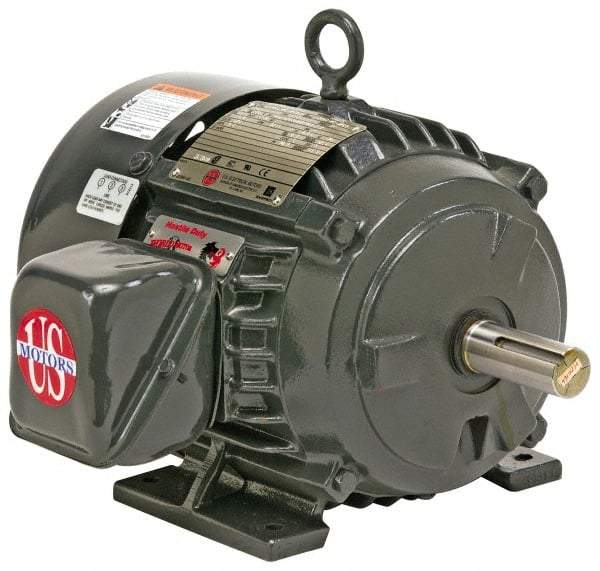

US Motors - 150 hp, TEFC Enclosure, No Thermal Protection, 3,575 RPM, 460 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 445 Frame, Rigid Mount, 1 Speed, Ball Bearings, 179 Full Load Amps, F Class Insulation, CCW Lead End
Item #: 86340767
Brand: US Motors
Model #: H125T1CS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 150 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 3575 |
| Voltage | 460 |
| Frequency Hz | 60 |
| Frame Size | 445 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Definite Purpose |
| Full Load Amperage | 179 |
| Insulation Class | F |
| Frame Material | Cast Iron |
| Overall Length (Decimal Inch) | 41.6300 |
| Full Load Efficiency Rating | 95.4 |
| Service Factor Rating | 1.15 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
