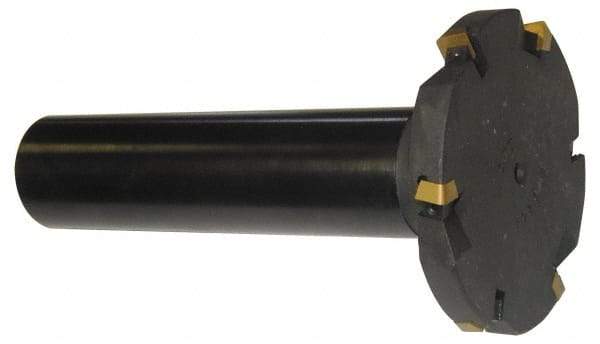

Cutting Tool Technologies - Shank Connection, 1/2" Cutting Width, 0.87" Depth of Cut, 3" Cutter Diam, 4 Tooth Indexable Slotting Cutter - 1-1/4" Shank Diam, DSSC Toolholder, 1312 Insert, Right Hand Cutting Direction
Item #: 86820990
Brand: Cutting Tool Technologies
Model #: DSSC-130
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Cutting Width (Decimal Inch) | 0.5000 |
| Cutting Width (Inch) | 1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.8700 |
| Cutter Diameter (Decimal Inch) | 3.0000 |
| Cutter Diameter (Inch) | 3 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Number of Teeth | 4 |
| Toolholder Style | DSSC |
| Series | DSSC |
| Insert Style | 1312 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Minimum Cutting Width (Inch) | 1/2 |
| Minimum Cutting Width (Decimal Inch) | 0.5000 |
| Maximum Cutting Width (Decimal Inch) | 0.5000 |
| Radius | No |
| Rake | Positive |
| Shank Length (Decimal Inch) | 5.7500 |
| Weldon Flat | Yes |
| Complete Insert Compatibility1 | 1312-015; 1312-030; 1312-060; 1312-125 |
