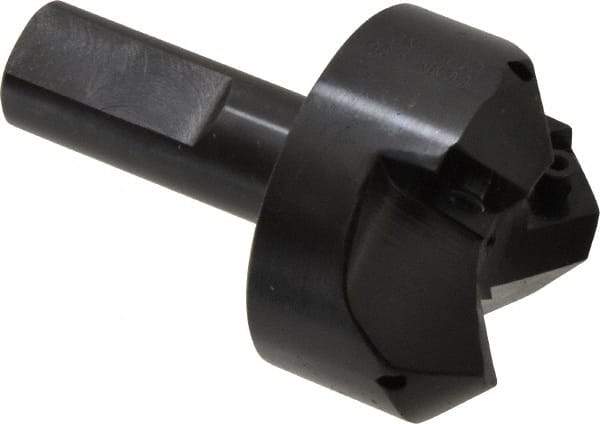

Cutting Tool Technologies - 45° Lead Angle, 1-1/2" Max Cut Diam, 1-1/2" Min Cut Diam, 0.32" Max Depth of Cut, Indexable Chamfer and Angle End Mill - 3 Inserts, CNMG 432 Insert Style, 3-1/4" Overall Length, Straight Shank, 45° Included Angle
Item #: 86821139
Brand: Cutting Tool Technologies
Model #: ECNM-430
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 45 |
| Included Angle | 45 |
| Overall Length (Decimal Inch) | 3.2500 |
| Insert Style | CNMG 432 |
| Maximum Depth of Cut (Decimal Inch) | 0.3200 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Toolholder Style | ECNM |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.2500 |
| Weldon Flat | Yes |
