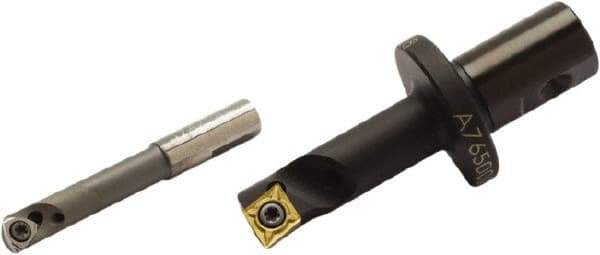

Seco - 10.01mm Min Bore Diam, 11.99mm Shank Diam, Indexable Boring Bar - 30mm Max Bore Depth, CC.. 0602.. Insert, Screw Holding Method
Item #: 87679668
Brand: Seco
Model #: 35477
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.3940 |
| Minimum Bore Diameter (mm) | 10.01 |
| Minimum Bore Diameter (Decimal Inch) | 0.3940 |
| Maximum Bore Depth (mm) | 30.00 |
| Maximum Bore Depth (Decimal Inch) | 1.1810 |
| Shank Diameter (mm) | 11.99 |
| Shank Diameter (Decimal Inch) | 0.4720 |
| Insert Compatibility | CC.. 0602.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Maximum Bore Diameter (mm) | 13.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.5120 |
| Maximum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch) | 0.5120 |
| Center to Cutting Edge (mm) | 4.80 |
| Center to Cutting Edge (Decimal Inch) | 0.1890 |
| Complete Insert Compatibility | CC.. 0602.. |
| Toolholder Material | Steel |
