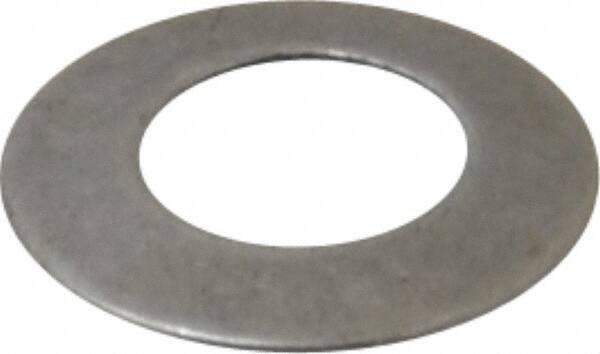

Gardner Spring - 1/8" Bolt, 1/8" ID, Grade 1074 Steel, Belleville Disc Spring - 1/4" OD, 0.017" High, 0.009" Thick
Item #: 87778254
Brand: Gardner Spring
Model #: MB0250-009
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1/8 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.1250 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0090 |
| Overall Height (Decimal Inch) | 0.0170 |
| Deflection (Decimal Inch) | 0.0042 |
| Deflection to Flat (Decimal Inch) | 0.0040 |
| Minimum Inside Diameter (Decimal Inch) | 0.1250 |
| Maximum Outside Diameter (Decimal Inch) | 0.2500 |
| Load at Flat (Lb.) | 17.90 |
| Load at Deflection (Lb.) | 11.60 |
