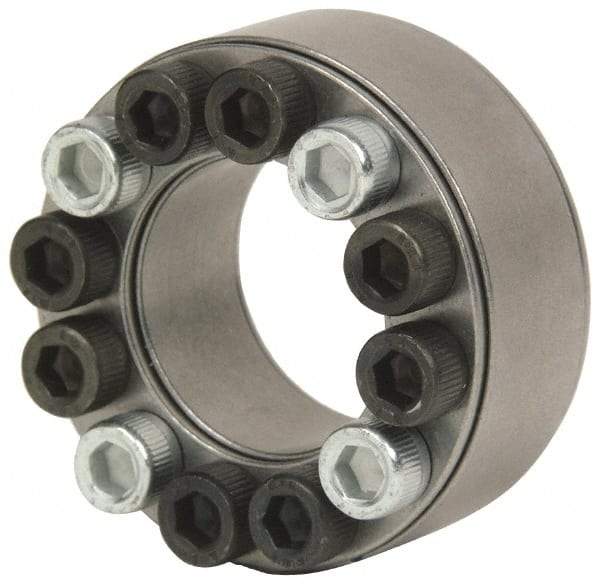

Climax Metal Products - M8 Thread, 1-5/8" Bore Diam, 2.953" OD, Shaft Locking Device - 12 Screws, 19,706 Lb Axial Load, 2.953" OAW, 0.787" Thrust Ring Width
Item #: 87793089
Brand: Climax Metal Products
Model #: C200E-162
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M8 |
| Bore Diameter (Decimal Inch) | 1.6250 |
| Outside Diameter (Decimal Inch) | 2.9530 |
| Thrust Ring Width (Decimal Inch) | 0.787 |
| Overall Width (Decimal Inch) | 2.9530 |
| Axial Load Lbs (Pounds) | 19706 |
| Maximum Torque Foot/Lbs (Pounds) | 1334 |
| Number of Screws | 12.000 |
| Contact Pressure on Hub (psi) | 22483.000 |
| Contact Pressure on Shaft (psi) | 40853.000 |
| Screw Seating Torque (In/Lb) | 312.000 |
