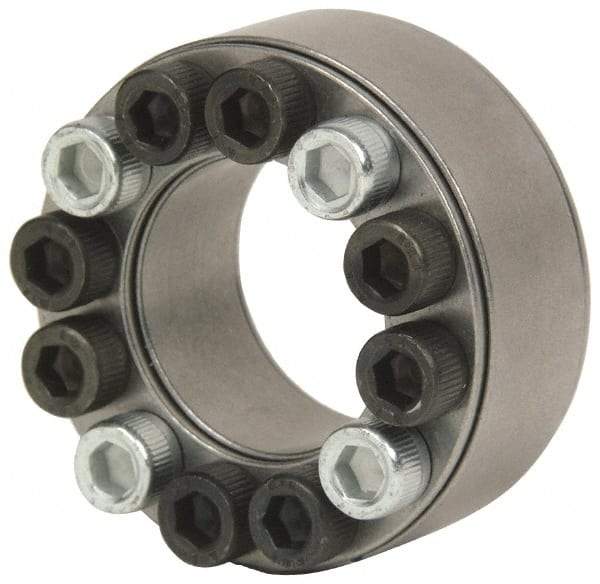

Climax Metal Products - M8 Thread, 2-3/8" Bore Diam, 3-17/32" OD, Shaft Locking Device - 14 Screws, 22,991 Lb Axial Load, 3-17/32" OAW, 0.787" Thrust Ring Width
Item #: 87793162
Brand: Climax Metal Products
Model #: C200E-237
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M8 |
| Bore Diameter (Decimal Inch) | 2.3750 |
| Outside Diameter (Decimal Inch) | 3.5310 |
| Thrust Ring Width (Decimal Inch) | 0.787 |
| Overall Width (Decimal Inch) | 3.5310 |
| Axial Load Lbs (Pounds) | 22991 |
| Maximum Torque Foot/Lbs (Pounds) | 2275 |
| Number of Screws | 14.000 |
| Contact Pressure on Hub (psi) | 21934.000 |
| Contact Pressure on Shaft (psi) | 32611.000 |
| Screw Seating Torque (In/Lb) | 312.000 |
