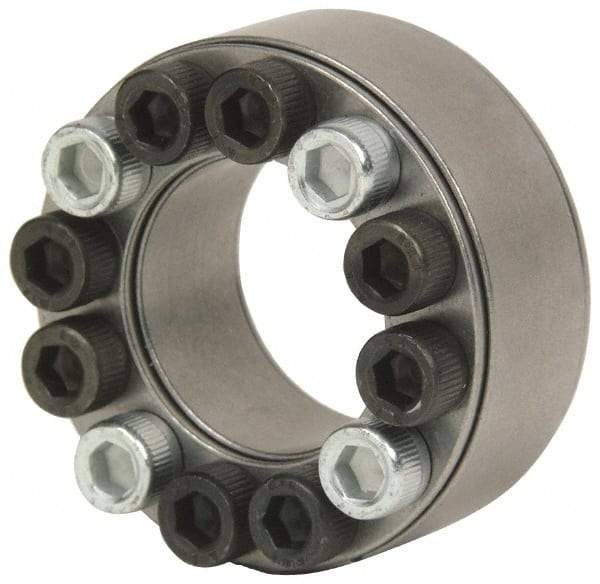

Climax Metal Products - M10 Thread, 3-3/4" Bore Diam, 5.305" OD, Shaft Locking Device - 18 Screws, 47,017 Lb Axial Load, 5.305" OAW, 0.945" Thrust Ring Width
Item #: 87793295
Brand: Climax Metal Products
Model #: C200E-375
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M10 |
| Bore Diameter (Decimal Inch) | 3.7500 |
| Outside Diameter (Decimal Inch) | 5.3050 |
| Thrust Ring Width (Decimal Inch) | 0.945 |
| Overall Width (Decimal Inch) | 5.3050 |
| Axial Load Lbs (Pounds) | 47017 |
| Maximum Torque Foot/Lbs (Pounds) | 7346 |
| Number of Screws | 18.000 |
| Contact Pressure on Hub (psi) | 24880.000 |
| Contact Pressure on Shaft (psi) | 35198.000 |
| Screw Seating Torque (In/Lb) | 612.000 |
