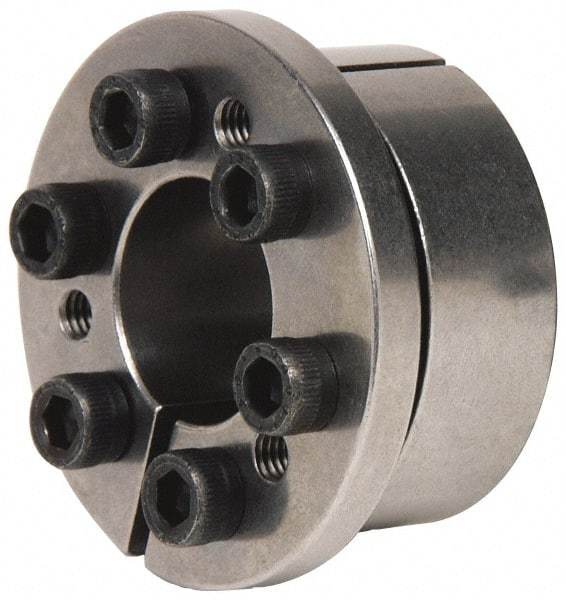

Climax Metal Products - M8 Thread, 2-3/16" Bore Diam, 3.346" OD, Shaft Locking Device - 8 Screws, 18,521 Lb Axial Load, 3.681" OAW, 0.787" Thrust Ring Width, 1,688 Ft/Lb Max Torque
Item #: 87793485
Brand: Climax Metal Products
Model #: C133E-218
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M8 |
| Bore Diameter (Decimal Inch) | 2.1875 |
| Outside Diameter (Decimal Inch) | 3.3460 |
| Thrust Ring Width (Decimal Inch) | 0.787 |
| Overall Width (Decimal Inch) | 3.6810 |
| Axial Load Lbs (Pounds) | 18521 |
| Maximum Torque (Ft/Lb) | 1688 |
| Number of Screws | 8.000 |
| Contact Pressure on Hub (psi) | 18644.000 |
| Contact Pressure on Shaft (psi) | 28522.000 |
| Screw Seating Torque (In/Lb) | 360.000 |
