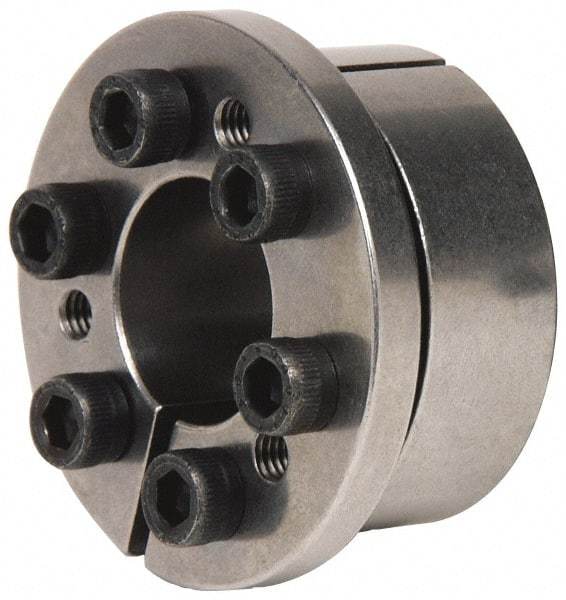

Climax Metal Products - M12 Thread, 3-15/16" Bore Diam, 5.709" OD, Shaft Locking Device - 8 Screws, 45,406 Lb Axial Load, 6-1/16" OAW, 1.024" Thrust Ring Width, 7,449 Ft/Lb Max Torque
Item #: 87793626
Brand: Climax Metal Products
Model #: C133E-393
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M12 |
| Bore Diameter (Decimal Inch) | 3.9375 |
| Outside Diameter (Decimal Inch) | 5.7090 |
| Thrust Ring Width (Decimal Inch) | 1.024 |
| Overall Width (Decimal Inch) | 6.0630 |
| Axial Load Lbs (Pounds) | 45406 |
| Maximum Torque (Ft/Lb) | 7449 |
| Number of Screws | 8.000 |
| Contact Pressure on Hub (psi) | 20611.000 |
| Contact Pressure on Shaft (psi) | 29883.000 |
| Screw Seating Torque (In/Lb) | 1284.000 |
