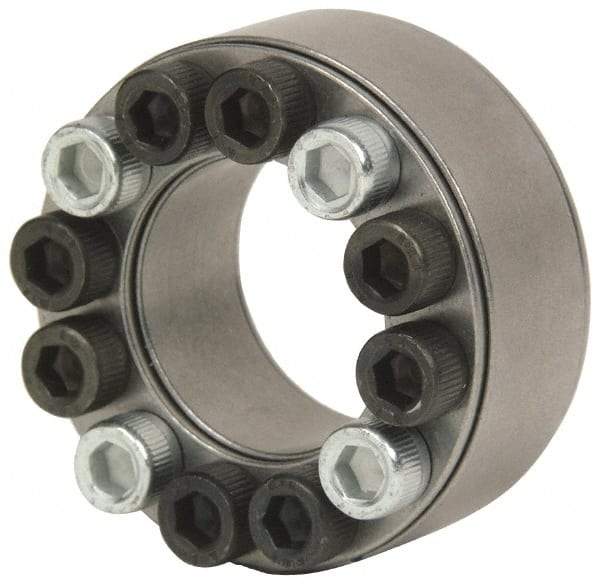

Climax Metal Products - M10 Thread, 90mm Bore Diam, 130mm OD, Shaft Locking Device - 16 Screws, 41,793 Lb Axial Load, 5.118" OAW, 0.945" Thrust Ring Width
Item #: 87793865
Brand: Climax Metal Products
Model #: C200M-90X130
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M10 |
| Bore Diameter (mm) | 90.000 |
| Outside Diameter (mm) | 130.0000 |
| Thrust Ring Width (Decimal Inch) | 0.945 |
| Overall Width (Decimal Inch) | 5.1180 |
| Axial Load Lbs (Pounds) | 41793 |
| Maximum Torque Foot/Lbs (Pounds) | 6170 |
| Number of Screws | 16.000 |
| Contact Pressure on Hub (psi) | 22924.000 |
| Contact Pressure on Shaft (psi) | 33112.000 |
| Screw Seating Torque (In/Lb) | 612.000 |
