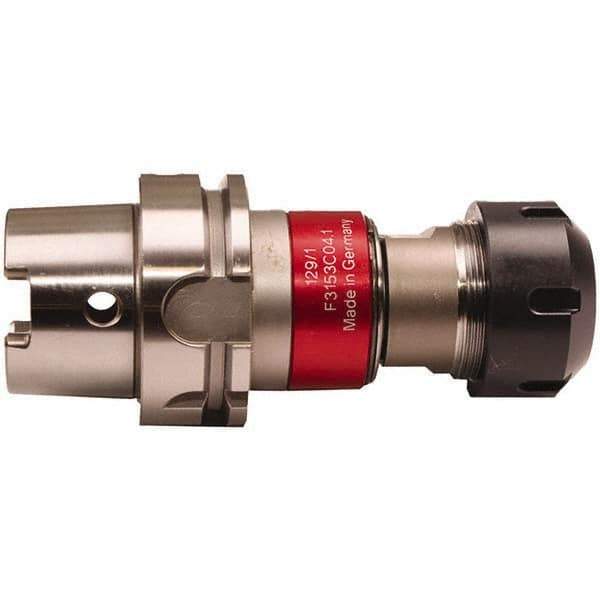

Emuge - HSK63A Taper Shank Tension & Compression Tapping Chuck - M4 Min Tap Capacity, 108.8mm Projection, Through Coolant
Item #: 87820882
Brand: Emuge
Model #: F3153C04.1
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Taper Shank |
| Taper Size | HSK63A |
| Minimum Tap Capacity (mm) | M4 |
| Projection (Decimal Inch) | 4.2835 |
| Projection (mm) | 108.80 |
| Quick Change | No |
| Minimum Collet Capacity (mm) | 4.50 |
| Minimum Collet Capacity (Decimal Inch) | 0.1772 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Maximum Collet Capacity (mm) | 16.00 |
| Collet System | ER Tap |
| Holder Series | Softsynchro 3 |
| Nose Diameter (mm) | 50.00 |
| Nose Diameter (Decimal Inch) | 1.9685 |
| Tap Depth (mm) | 29.00 |
| Tension (mm) | 0.50 |
| Compression (Decimal Inch) | 0.0197 |
| Compression (mm) | 0.50 |
| Overall Length (mm) | 140.80 |
| Overall Length (Decimal Inch) | 5.5433 |
| Through Coolant | Yes |
