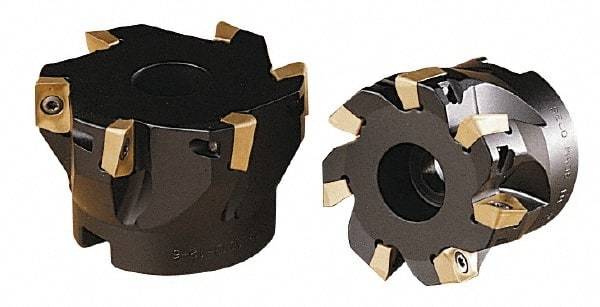

Kennametal - 5 Inserts, 2-1/2" Cut Diam, 3/4" Arbor Diam, 0.6" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1.56" High, AP.T 1604.., AP.W 1604.. & APEX 1604.. Insert Compatibility, Through Coolant, Series 7690 VA 16
Item #: 87927703
Brand: Kennametal
Model #: 5673388
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.5600 |
| Insert Compatibility | AP.T 1604.., AP.W 1604.., APEX 1604.. |
| Series | 7690 VA 16 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.6000 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Toolholder Material | Steel |
