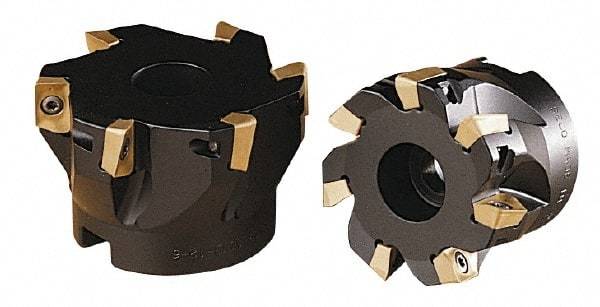

Kennametal - 7 Inserts, 4" Cut Diam, 1-1/4" Arbor Diam, 0.6" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1.96" High, AP.T 1604.., AP.W 1604.. & APEX 1604.. Insert Compatibility, Through Coolant, Series 7690 VA 16
Item #: 87927729
Brand: Kennametal
Model #: 5673896
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 4 |
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Arbor Hole Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.9600 |
| Insert Compatibility | AP.T 1604.., AP.W 1604.., APEX 1604.. |
| Series | 7690 VA 16 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.6000 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Number of Flutes | 7 |
| Toolholder Material | Steel |
