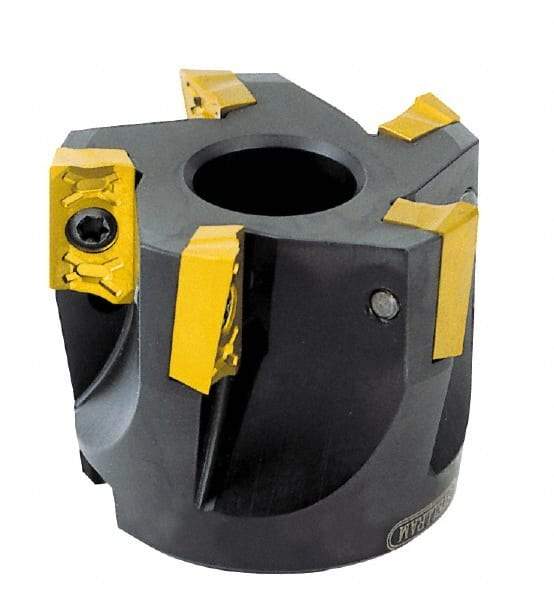

Kennametal - 3° Lead Angle, 45.97mm Max Cut Diam, 0.3" Max Depth of Cut, Indexable Chamfer & Angle End Mill - 4 Inserts, OD.T 0404.., ODMW 0404.. Insert Style, 4.33" OAL, Through Coolant, Straight Shank
Item #: 87927802
Brand: Kennametal
Model #: 5673437
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Cutting Diameter (mm) | 45.97 |
| Maximum Cutting Diameter (Decimal Inch) | 1.8100 |
| Shank Type | Weldon |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Lead Angle | 3 |
| Overall Length (Decimal Inch) | 4.3300 |
| Insert Style | OD.T 0404.., ODMW 0404.. |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3000 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Toolholder Style | 7745 VOD 04 |
| Number of Flutes | 4 |
| Weldon Flat | Yes |
| Toolholder Material | Tool Steel |
