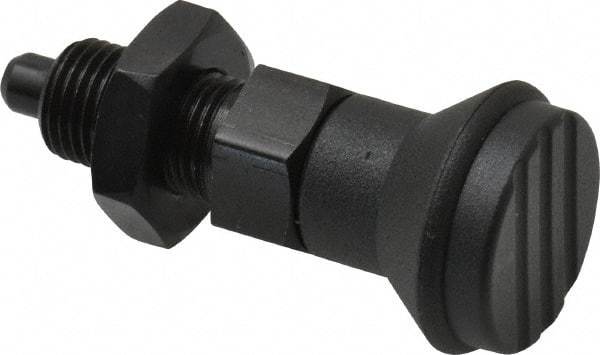

Gibraltar - M10x1, 15mm Thread Length, 5mm Plunger Diam, Knob Handle Indexing Plunger - Plunger Style B, 17mm Body Length, 47mm OAL, Steel
Item #: 88074653
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M10x1 |
| Thread Length (mm) | 15.00 |
| Plunger Diameter (mm) | 5.00 |
| Body Length (mm) | 17.00 |
| Plunger Type | Non-Locking |
| Indexing Plunger Style Code | B |
| Lock Nut | Yes |
| Plunger Projection (mm) | 5.00 |
| Initial End Force (N) | 5.00 |
| Final End Force (N) | 12.00 |
| Knob Diameter (mm) | 21.00 |
| Distance Across Nut Flats (mm) | 13.00 |
| Nut Height (mm) | 7.00 |
| Overall Length (mm) | 47.00 |
| Tolerance (mm) | -0.04; -0.02 |
| Material | Steel |
| Finish/Coating | Black Oxide |
