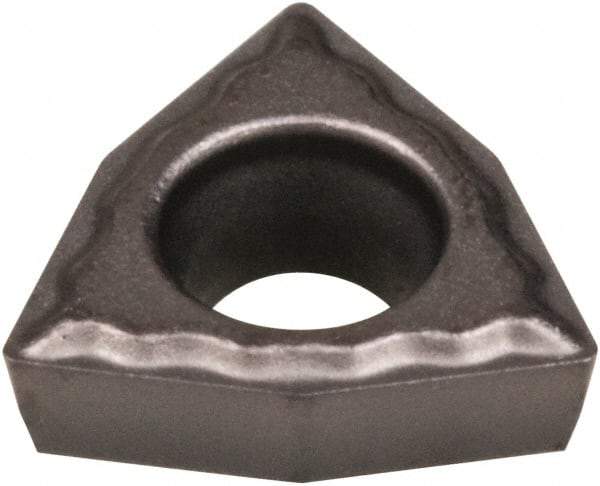

Kennametal - WPGT1.510.5 SR Grade KCU10 Carbide Turning Insert - AlTiN Finish, 80° Trigon, 3/16" Inscr Circle, 1/16" Thick, 0.008" Corner Radius
Item #: 88306436
Brand: Kennametal
Model #: 4045345
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPGT |
| Insert Size | 1.510.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 3/16 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0625 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Chip Breaker | SR |
| Hole Diameter (Decimal Inch) | 0.2000 |
| ISO Number | WPGTS30102UF |
| Relief Angle | 11 |
| Manufacturers Catalog Number | WPGT15105UF |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Trigon |
