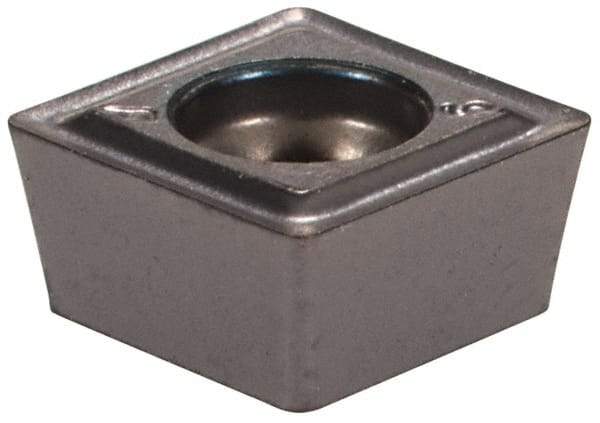

Iscar - SOMX060304 GF Grade IC908 Carbide Indexable Drill Insert - TiAlN Finish, Square, 6.2mm Inscribed Circle
Item #: 88428008
Brand: Iscar
Model #: 5506340
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Insert Style | SOMX |
| Insert Size | 060304 |
| Material | Carbide |
| Material Grade | C1/C2/C6/C7 |
| Manufacturer's Grade | IC908 |
| Inscribed Circle (mm) | 6.20 |
| Inscribed Circle (Decimal Inch) | 0.2441 |
| Thickness (mm) | 3.20 |
| Thickness (Decimal Inch) | 0.1260 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Included Angle | 90 |
| Coating | TiAlN |
| Coating Process | PVD |
| Chipbreaker | GF |
