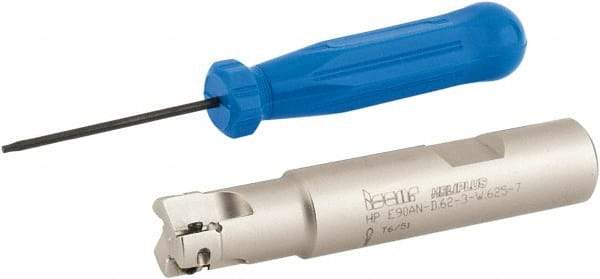

Iscar - 5/8" Cut Diam, 0.303" Max Depth of Cut, 5/8" Shank Diam, 3-1/4" OAL, Indexable Square Shoulder End Mill - HP AN.. 0702.. Inserts, Weldon Shank, 90° Lead Angle, Series Heliplus
Item #: 88542097
Brand: Iscar
Model #: 3103896
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Cutting Diameter (Inch) | 5/8 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (Decimal Inch) | 3.2500 |
| Lead Angle | 90 |
| Series | Heliplus |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3030 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HP E90AN-07 |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 1.0000 |
| Weldon Flat | Yes |
| Insert Compatibility | HP AN.. 0702.. |
