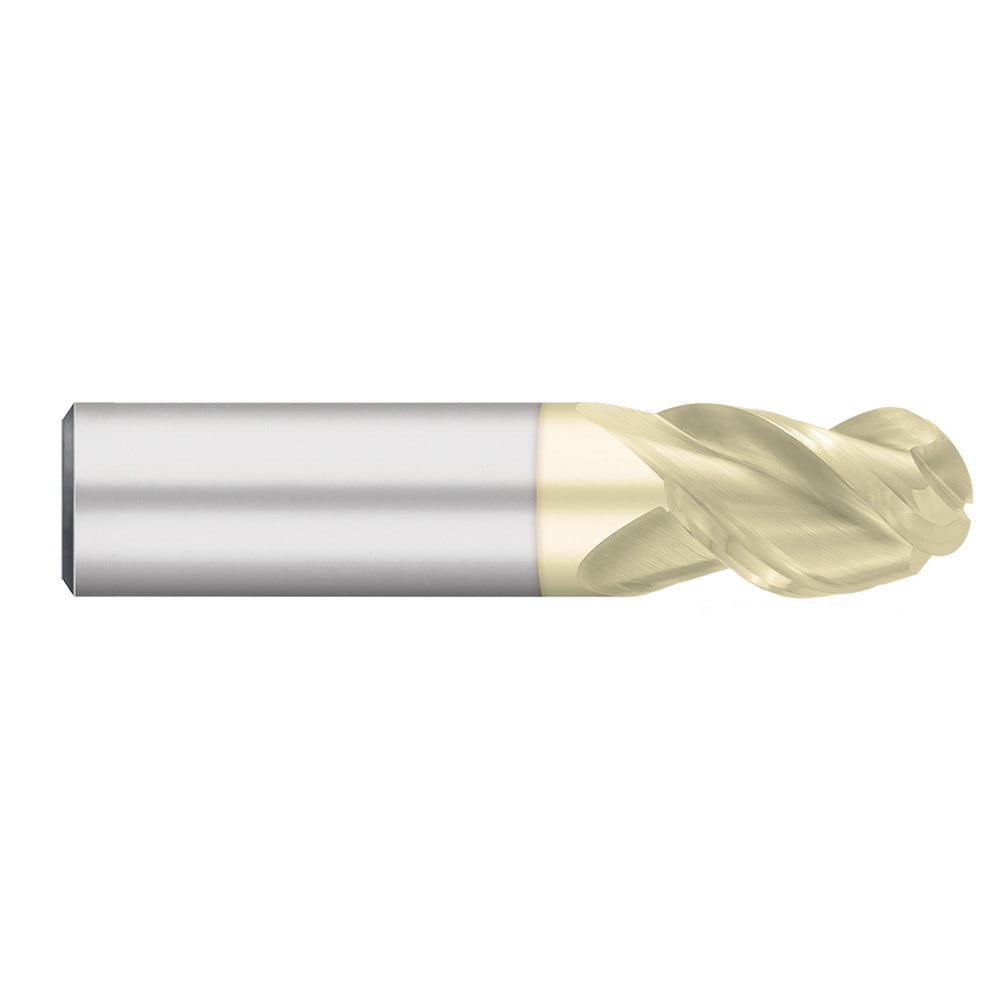

Ball End Mill: 5/16" Dia, 13/16" LOC, 3 Flute, Solid Carbide
Item #: 79935698
Brand: Titan USA
Model #: TC63118
Product Specifications
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 13/16 |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 2-1/2 |
| Shank Diameter (Inch) | 5/16 |
| Extended Reach | No |
| Variable Helix | No |
| Variable Index | No |
| Helix Angle | 45 |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| Undercutting | No |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 1.0000 |
| Length Type | Standard |
| Helix Style | High |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Nose Radius (Decimal Inch) | 0.1563 |
| Reach Length (Decimal Inch) | 0.8120 |
| Mill Diameter Tolerance | +0.0000/-0.0020 in |
| Shank Diameter Tolerance | h6 |
| Maximum Helix Angle | 45 |
| Minimum Helix Angle | 45 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Material Grade | Carbide |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | Carbide - For Aluminum - 3 Flute - Ball - 45° Helix, Milling |
| Flute Type | Spiral |
| UNSPSC Code | 27112803 |
| Centercutting | Yes |
| Coating Classification | Uncoated |
| Single Or Double End | Single |
| Shank Type | Straight-Cylindrical |
| Pitch | Normal |
| Coolant Through | No |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8120 |
| Manufacturers Catalog Number | TC63118 |
| System Of Measurement | Fractional Inch |
| Country of Origin | UNITED STATES |
