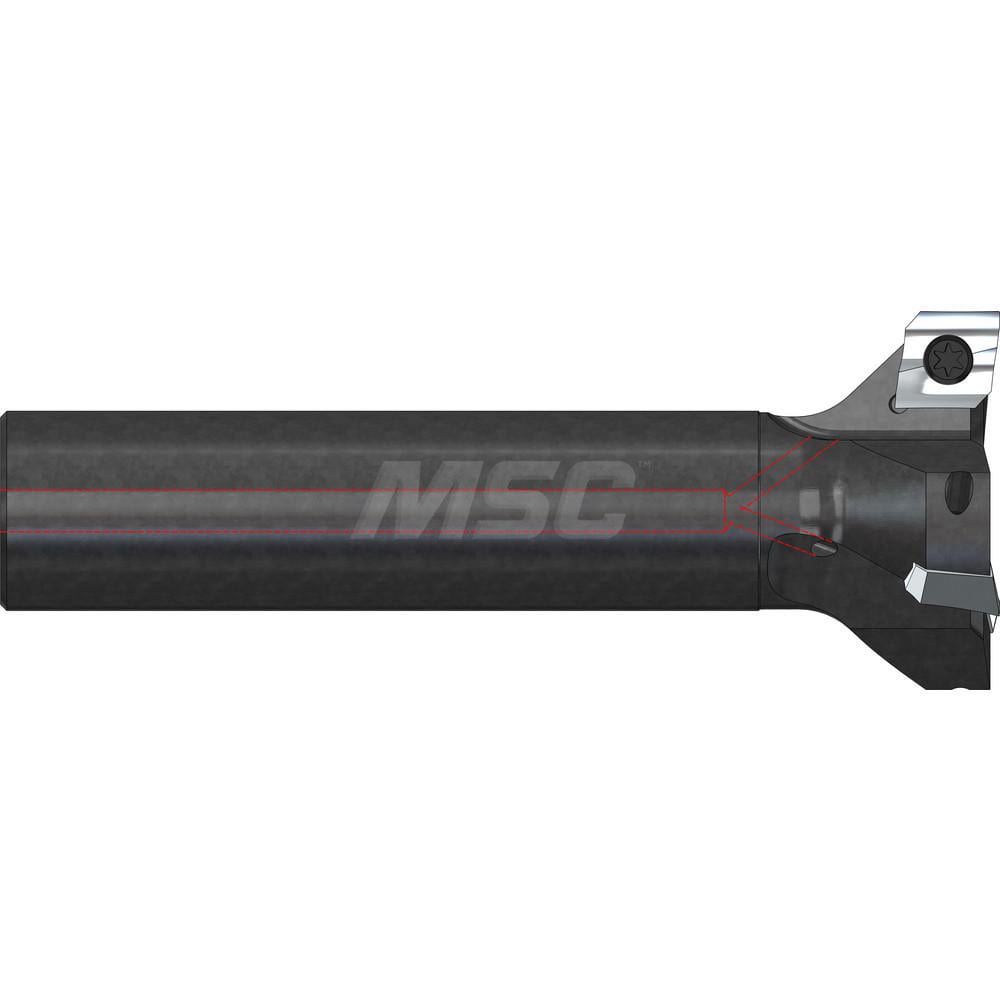

Indexable High-Feed End Mill: 1″ Cylindrical Shank Uses 3 ADEH Inserts, 0.38″ Max Depth, Through Coolant
Item #: 89052781
Brand: A.B. Tools
Model #: SH200-1
Product Specifications
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (mm) | 50.80 |
| Maximum Depth of Cut (mm) | 9.53 |
| Maximum Depth of Cut (Decimal Inch) | 0.3800 |
| Toolholder Style | SHEAR HOG |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| Compatible Insert Style | ADEH |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Series | SH200-1 |
| Modular Connection Size | 1 |
| Weldon Flat | No |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
