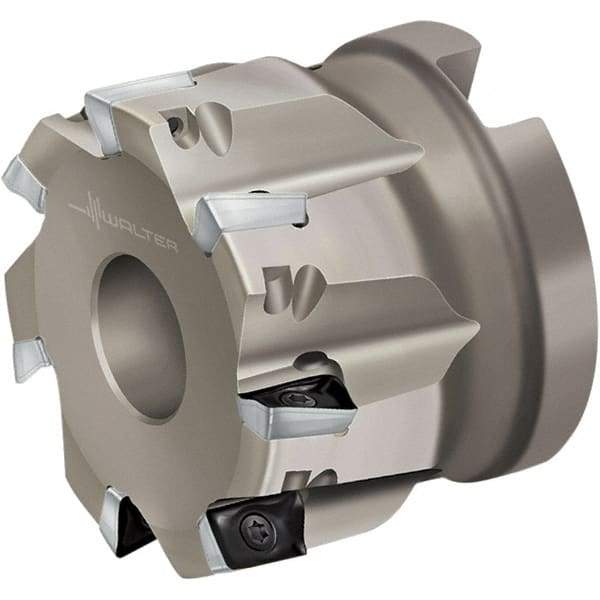

Walter - 5 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 0.394" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 1.575" High, AD.. 10T3.. Insert Compatibility, Through Coolant, Series Xtra-tec
Item #: 89131940
Brand: Walter
Model #: 5535437
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 1.5750 |
| Insert Compatibility | AD.. 10T3.. |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | F4042R |
| Number of Flutes | 5 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | ADGT 10T316R-D67; ADGT 10T316R-G77; ADGT 10T325R-D67; ADGT 10T325R-G77; ADGT 10T330R-D67; ADGT 10T330R-G77; ADGT 10T332R-D67; ADGT 10T332R-G77; ADGT 10T3PER-D67; ADGT 10T3PER-G77; ADHT 10T3PER-G88; ADKT 10T3PER-F56; ADMT 10T308R-F56; ADMT 10T308R-G56; ADM |
