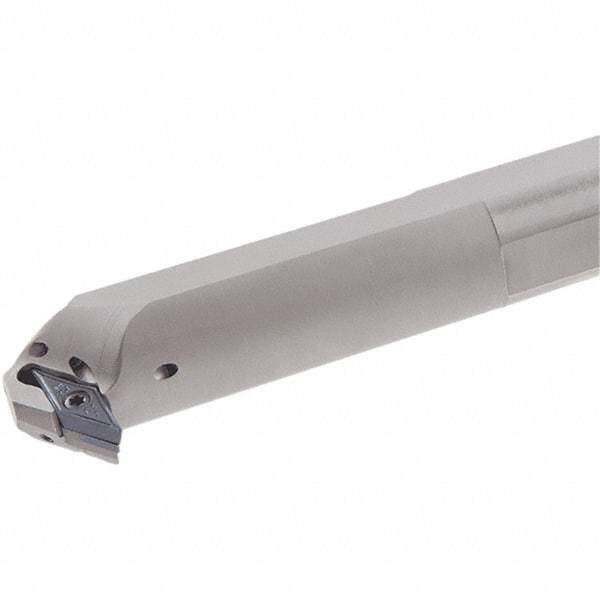

Iscar - 49.5mm Min Bore Diam, 350mm OAL, 40mm Shank Diam, S-SVLBC Indexable Boring Bar - 60mm Max Bore Depth, VBMT 1604T, VC.. 1604.. Insert, Screw Holding Method
Item #: 89150973
Brand: Iscar
Model #: 3601075
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SVLBC |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 49.50 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 60.00 |
| Overall Length (mm) | 350.00 |
| Shank Diameter (mm) | 40.00 |
| Insert Compatibility | VBMT 1604T; VC.. 1604.. |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 27.00 |
| Insert Inscribed Circle (mm) | 9.52 |
| Rake Angle | -5 |
| Complete Insert Compatibility | VC..16.. |
| Toolholder Material | Steel |
