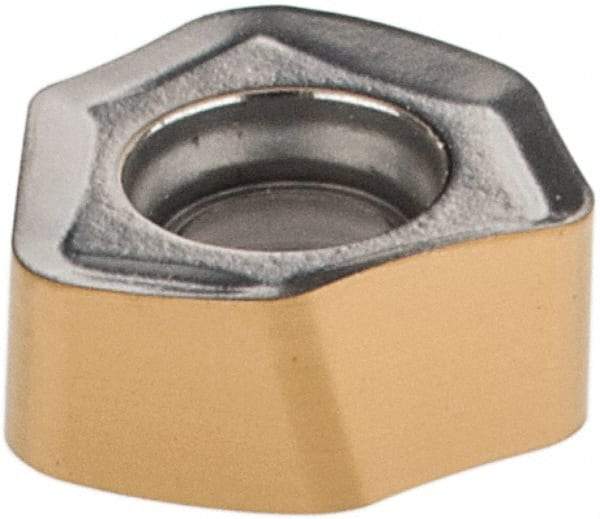

Iscar - H600 WXCU040310 HP Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 0.122" Thick, 0.2461" Inscribed Circle, 0.96mm Corner Radius
Item #: 89329171
Brand: Iscar
Model #: 5606382
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H600 WXCU |
| Insert Size | 040310 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Length (Decimal Inch) | 0.1626 |
| Inscribed Circle (Decimal Inch) | 0.2461 |
| Thickness (Decimal Inch) | 0.1220 |
| Corner Radius (Decimal Inch) | 0.0378 |
| Corner Radius (mm) | 0.96 |
| Relief Angle | 28.000 |
| Rake Angle | 28 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Trigon |
| Chipbreaker | HP |
| Maximum Depth of Cut (mm) | 0.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0315 |
| ISO Number | H600 WXCU 040310HP |
