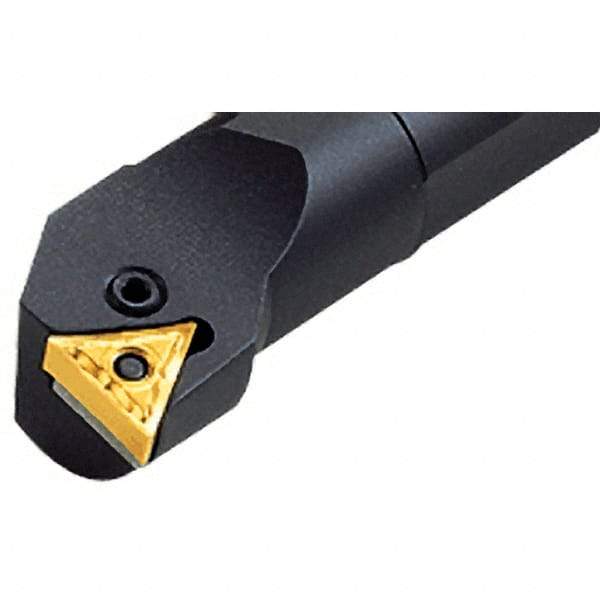

Iscar - 24mm Min Bore Diam, 200mm OAL, 20mm Shank Diam, S-PTFN Indexable Boring Bar - 32mm Max Bore Depth, TNMG 110304 Insert, Clamp Holding Method
Item #: 91111468
Brand: Iscar
Model #: 3601097
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-PTFN |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 24.00 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 32.00 |
| Overall Length (mm) | 200.00 |
| Shank Diameter (mm) | 20.00 |
| Insert Compatibility | TNMG 110304 |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 13.00 |
| Insert Inscribed Circle (mm) | 6.35 |
| Rake Angle | -14 |
| Complete Insert Compatibility | TNMG 110304-NF |
| Toolholder Material | Steel |
