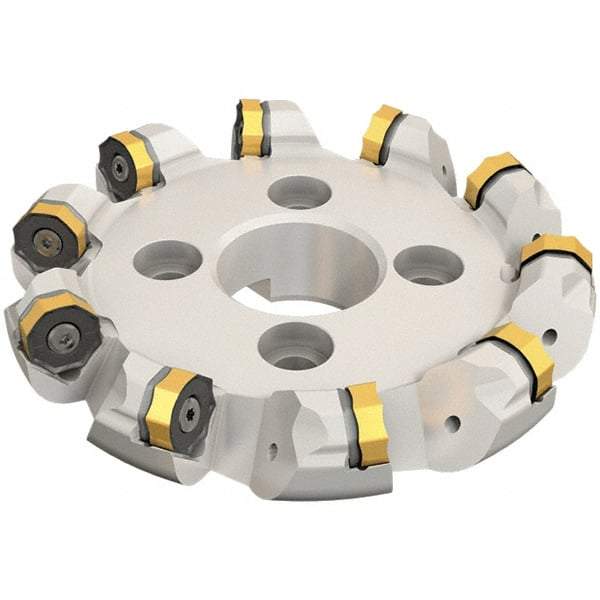

Iscar - 8.96" Cut Diam, 2-1/2" Arbor Hole, 0.28" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, ONMU 1008\xB6S845 SNMU 2608 Insert, Right Hand Cut, 10 Flutes, Series Helido
Item #: 91121400
Brand: Iscar
Model #: 3106622
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 8.9600 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4200 |
| Insert Compatibility | ONMU 1008; S845 SNMU 2608 |
| Series | Helido |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2800 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | SOF45-26 |
| Number of Flutes | 10 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.2800 |
| Maximum Insert Radius (Decimal Inch) | 0.0630 |
| Complete Insert Compatibility | ONMU 1008; S845 SNMU 2608 |
