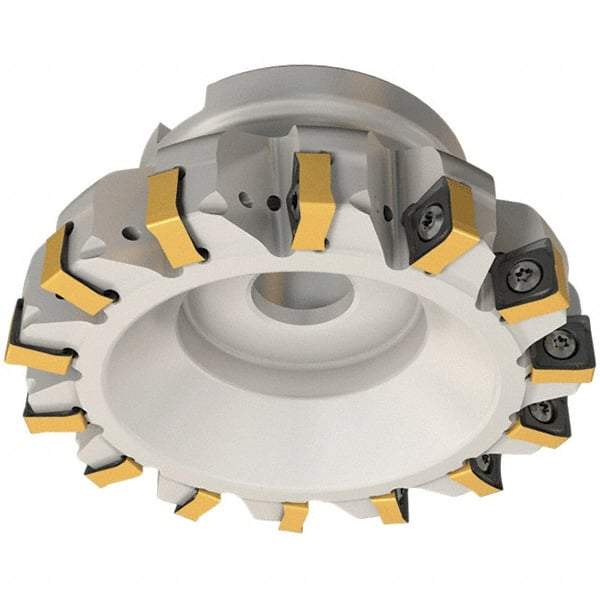

Iscar - 100mm Cut Diam, 32mm Arbor Hole, 9mm Max Depth of Cut, 88° Indexable Chamfer & Angle Face Mill - 11 Inserts, OXMT 0507\xB6S890 SNMU 1305 Insert, Right Hand Cut, 11 Flutes, Through Coolant, Series Helido
Item #: 91121608
Brand: Iscar
Model #: 3106068
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 88 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | OXMT 0507; S890 SNMU 1305 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.00 |
| Number of Cutter Inserts | 11 |
| Insert Holding Method | Screw |
| Cutter Style | S890 FSN-13 |
| Number of Flutes | 11 |
| Keyway Width (mm) | 14.40 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Counterbore Diameter (Decimal Inch) | 1.6930 |
| Complete Insert Compatibility | OXMT 0507; S890 SNMU 1305PN... |
