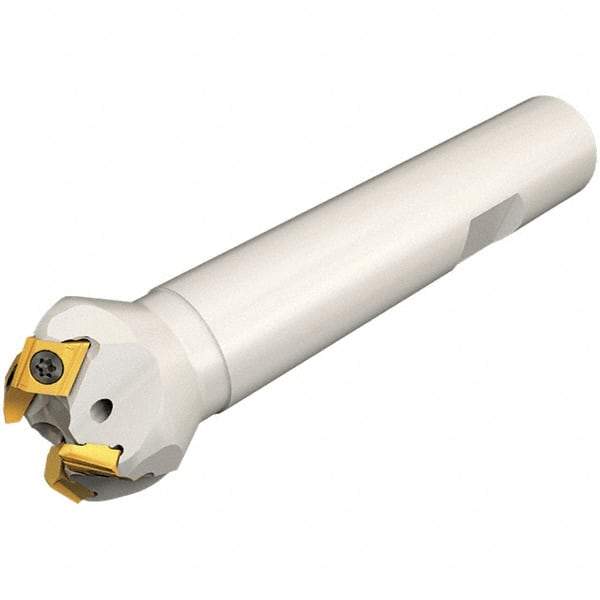

Iscar - 30° Lead Angle, 21.5mm Max Cut Diam, 12mm Min Cut Diam, 2.5mm Max Depth of Cut, Indexable Chamfer and Angle End Mill - 4 Inserts, T290 LNMT/LNHT 0502 Insert Style, 90mm Overall Length, Through Coolant, Straight Shank
Item #: 91122697
Brand: Iscar
Model #: 3106174
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Cutting Diameter (mm) | 12.00 |
| Maximum Cutting Diameter (mm) | 21.50 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 16.00 |
| Lead Angle | 30 |
| Overall Length (mm) | 90.00 |
| Insert Style | T290 LNMT/LNHT 0502 |
| Series | IscarMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 2.50 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Toolholder Style | T230 |
| Number of Flutes | 4 |
| Head Length (mm) | 20.00 |
| Weldon Flat | Yes |
